ZY T Series

Durable and Cost-effective Die-cast Aluminum Rental Screen

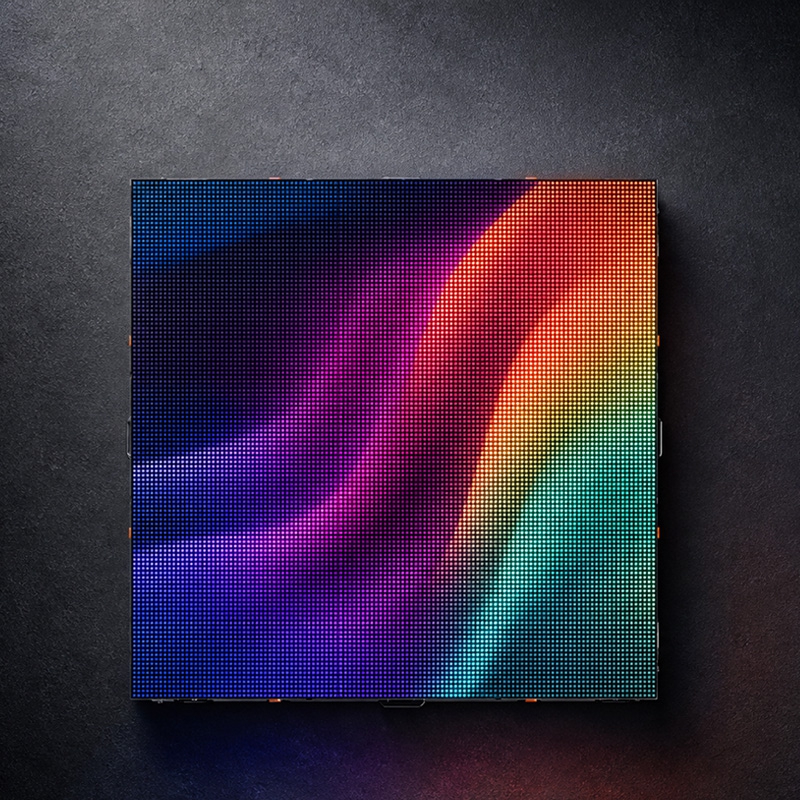

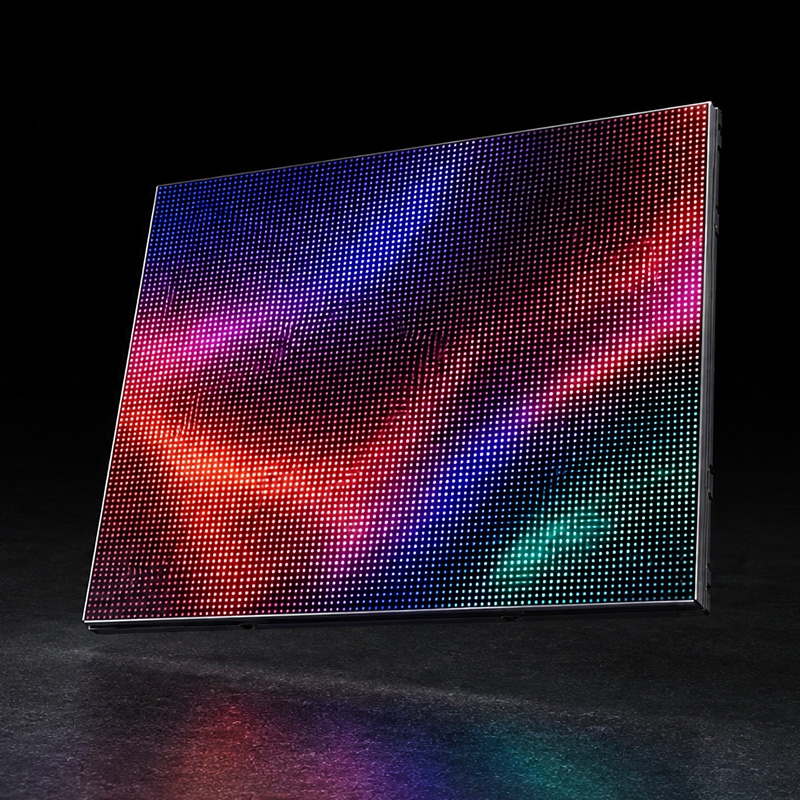

ZY T Series die-cast aluminum rental LED display features quick on-site assembly and disassembly, supporting front and rear modular maintenance. With a refresh rate up to 7680Hz, it delivers flicker-free broadcast-grade image quality. Lightweight, sturdy and cost-efficient, it is widely used for stages, commercial events and temporary exhibition backgrounds.

Inquiry

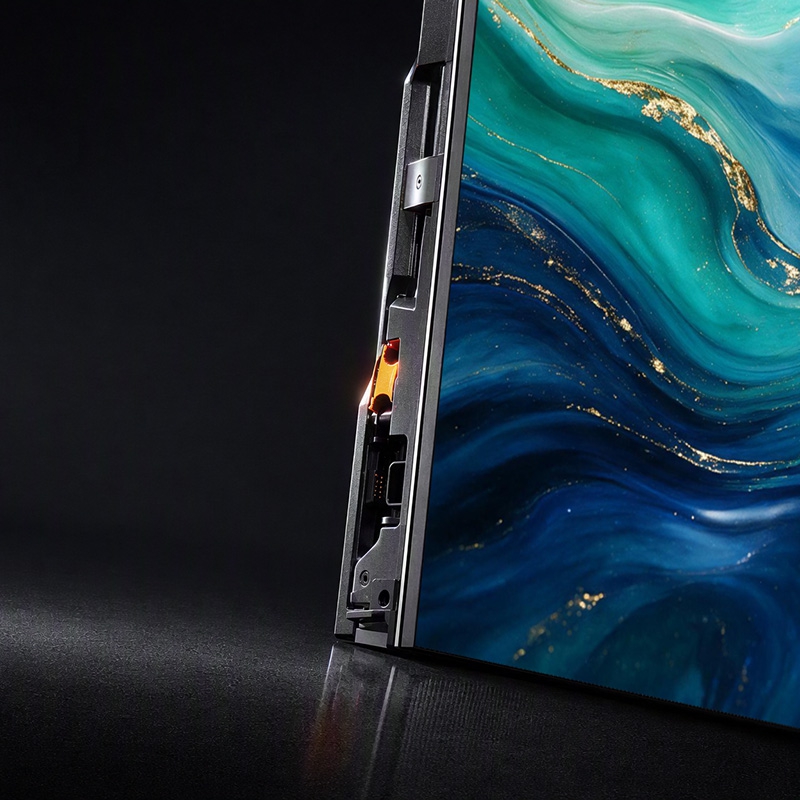

    Quick Mounting

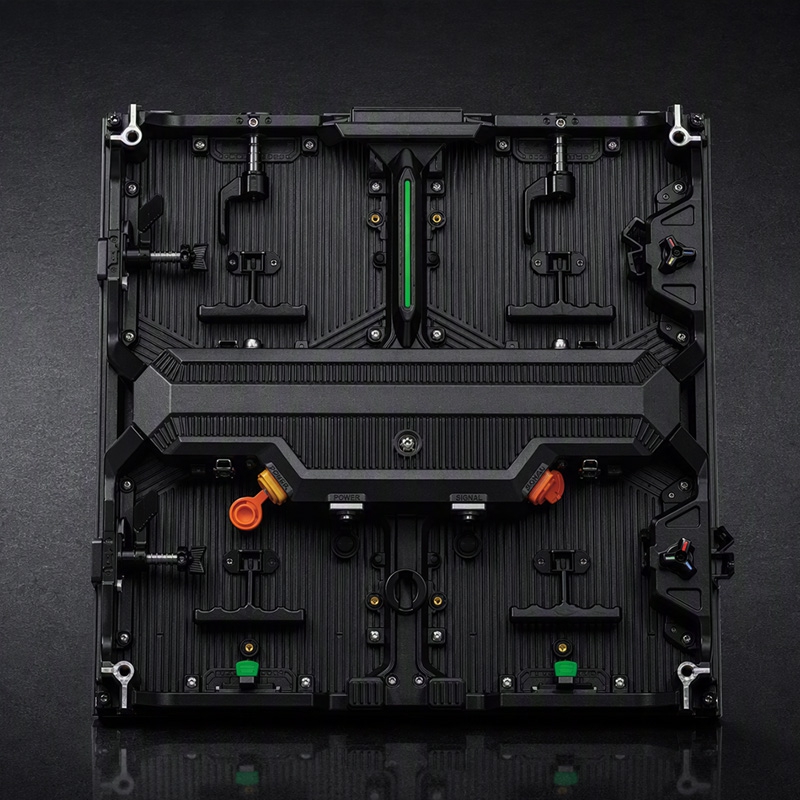

    Die-cast aluminum cabinets, quick install & dual-side maintenance, cost-effective for rental.


    Broadcast-Grade Display

    7680Hz high refresh rate and 18-bit grayscale produce flicker-free ultra-clear images for stage live shooting.


    Mixed Splicing

    500×500mm and 500×1000mm cabinets can be vertically spliced freely for flexible creative screen layouts.



    Product

    ZY-T25N

    ZY-T26N

    ZY-T29N

    ZY-T39N

    ZY-T26T

    ZY-T29T

    ZY-T39T

    Pixel Pitch(mm)

    2.5

    2.604

    2.976

    3.91

    2.604

    2.976

    3.91

    Cabinet Resolution(dots)

    200×200

    192×192

    168×168

    128×128

    192×192

    168×168

    128×128

    Cabinet Dimensions(W×H×D mm)

    500×500 ×83

    Usage

    Indoor

    Outdoor

    Protection Level

    IP43

    IP65

    Brightness (nits)

    ≥800

    ≥5000

    Weight (kg)

    7.9

    Cabinet Material

    Die-casting Aluminum

    Refresh Rate (Hz)

    ≥7680
