ZY S Series

Concave & Convex Curved Installation Die-cast Aluminum Rental Screen

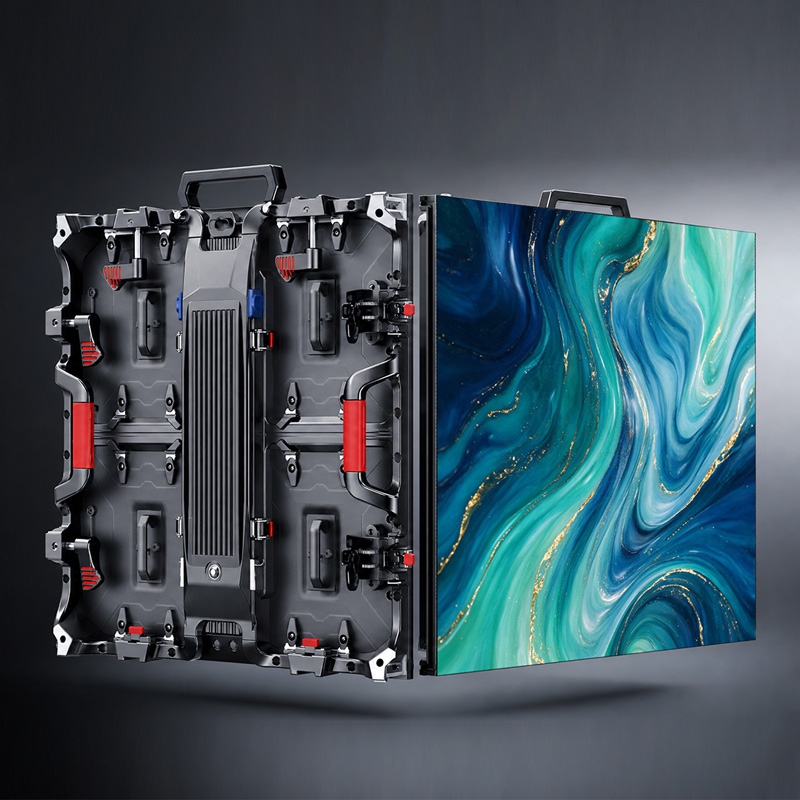

ZY S Series rental LED display features ultra-fast single-person installation and convenient dual-side maintenance. Standard die-cast aluminum cabinets can be hoisted and combined freely on site to save labor and installation time. Faulty modules can be replaced separately from front or rear without disassembling the whole screen, minimizing repair downtime. Durable for frequent repeated rental, it offers excellent cost performance for stages, commercial events and temporary exhibitions.

Inquiry

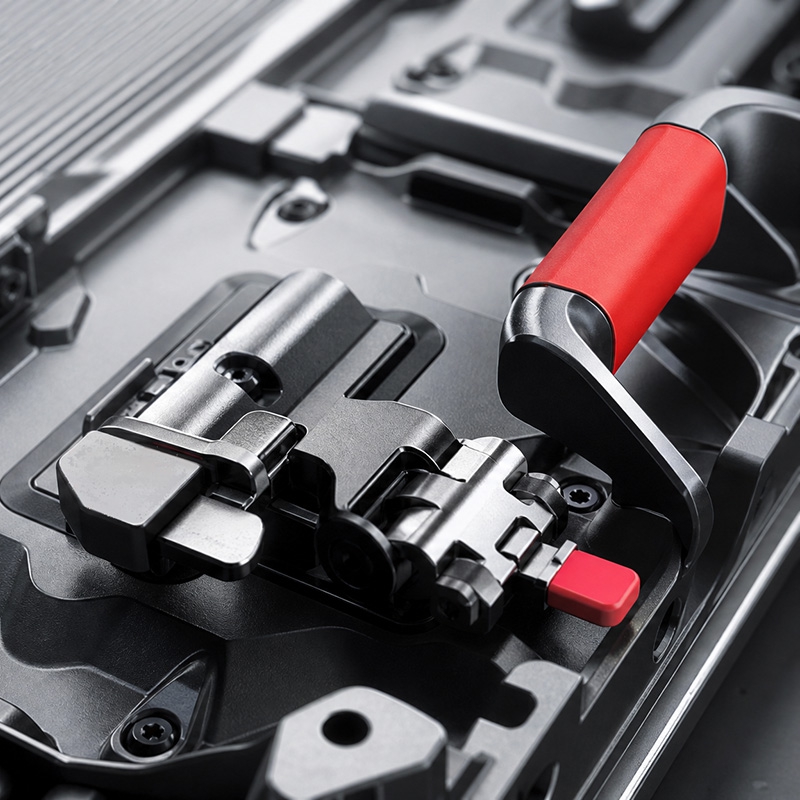

    Single-person Installation

    One-person hoisting & splicing, save labor and installation time for rental use.


    Front & Rear Dual Maintenance

    Front/back single module replacement, no full screen dismantling, less maintenance downtime.


    Durable Rental Design

    Lightweight 7.5kg cabinet with 3840–7680Hz high refresh rate, sturdy enough for frequent repeated use in stages and exhibitions.



    Product

    ZY-S15N

    ZY-S19N

    ZY-S25N

    ZY-S26N

    ZY-S29N

    ZY-S39N

    ZY-S26T

    ZY-S29T

    ZY-S39T

    Pixel Pitch(mm)

    1.5625

    1.953

    2.5

    2.604

    2.976

    3.91

    2.604

    2.976

    3.91

    Cabinet Resolution(dots)

    320×320

    256×256

    200×200

    192×192

    168×168

    128×128

    192×192

    168×168

    128×128

    Cabinet Dimensions(W×H×Dmm)

    500×500 ×83

    Usage

    Indoor

    Outdoor

    Protection Level

    IP43

    IP65

    Brightness (nits)

    ≥600

    ≥800

    ≥4000

    Weight (kg)

    7.5

    Cabinet Material

    Die-casting Aluminum

    Refresh Rate (Hz)

    3840-7680
