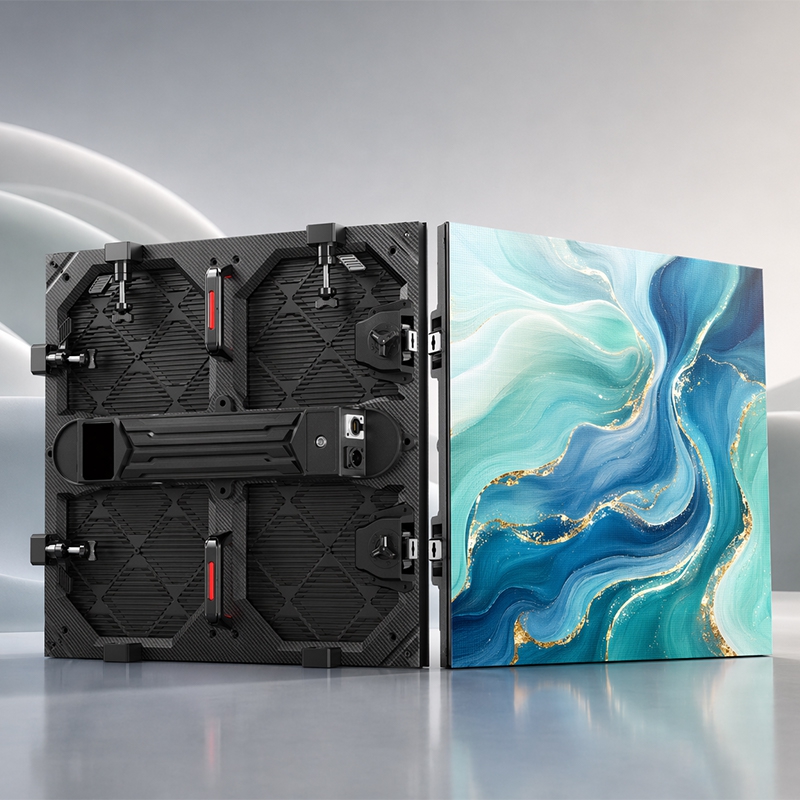

Ultra-Light Carbon Fiber Cabinet
40%-60% lighter than die-cast aluminum cabinets, operable by single person to cut logistics and labor costs.

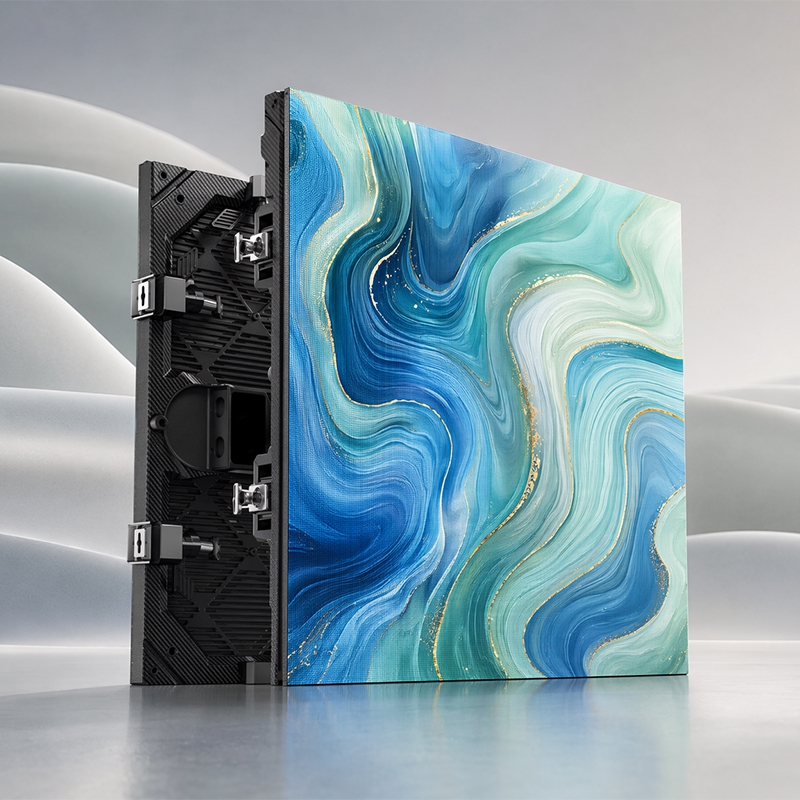

Ultra-Slim Integrated Profile
Slim cabinet fits overhead rigging and depth-limited exhibition booth installation.
Tool-Free Rapid Assembly
Precision quick lock enables fast installation and improves on-site setup efficiency greatly.
IP65 Waterproof & Dustproof
Full rain and dust protection for stable operation in tough outdoor conditions.
Dual Front & Rear Maintenance with Hard HUB Connection
Board hard connection allows front/rear quick access for on-site troubleshooting.
Product | ZC-391 | ZC-595 | ZC-694 |
Pixel pitch(mm) | 3.91 | 5.95 | 6.94 |
LED configuration | SMD1921 | SMD1921 | SMD1921 |
Cabinet size(W×H×Dmm) | 500×1000×63 | 500×1000×63 | 500×1000×63 |
Cabinet resolution | 128×256 | 84×168 | 72×144 |
Transparency | Non-Transparent | 30% | 50% |
Cabinet material | Carbon fiber | Carbon fiber | Carbon fiber |
Cabinet weight(Kg) | 8.5 | 6.9 | 6.9 |
Brightness(nits) | 5000nits | 5000nits | 5000nits |
View angle(H/V) | 140° /140° |
Screen service | Front/Rear |
Gray scale(bit) | 16bit |
Refresh rate(Hz) | 3840 |
IP rate | IP65 |
